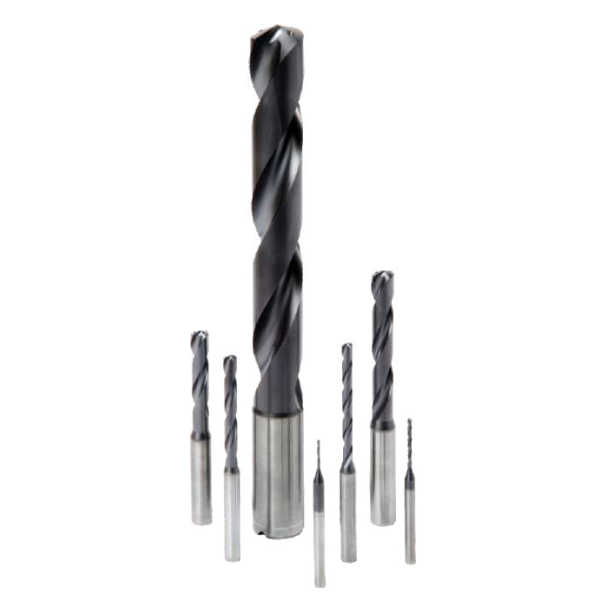

Sveder špiralni Vari Drill VHM 5xD, brez kanalov, WU25PD TiAIN

Skupna šifra: 5xD_VDS202A

Oznaka:

Želite sočasno naročiti več različic tega izdelka? Pojdi nahiter vnos

Pošljite povpraševanje za ta izdelek.

Vas zanimajo pogoji dostave?

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	12	10200	P, M, K, N, S	118	71	56	1,7	45	VDS202A10200	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	6	4200	P, M, K, N, S	74	36	29	0,7	36	VDS202A04200	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
18	17,500	P, M, K, N, S	143	93	71	3,0	48	VDS202A17500	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
20	19,500	P, M, K, N, S	153	101	77	3,4	50	VDS202A19500	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	10	8500	P, M, K, N, S	103	61	49	1,4	40	VDS202A08500	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	10	10000	P, M, K, N, S	103	61	49	1,7	40	VDS202A10000	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	12	11000	P, M, K, N, S	118	71	56	1,9	45	VDS202A11000	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
18	17,000	P, M, K, N, S	143	93	71	3,0	48	VDS202A17000	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	6	4000	P, M, K, N, S	74	36	29	0,7	36	VDS202A04000	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	8	6200	P, M, K, N, S	91	53	43	1	36	VDS202A06200	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	4	2300	P, M, K, N, S	58	18	14	0,4	28	VDS202A02300	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	4	2800	P, M, K, N, S	58	22	17	0,5	28	VDS202A02800	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	6	3500	P, M, K, N, S	66	28	23	0,6	36	VDS202A03500	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	8	7200	P, M, K, N, S	91	53	43	1,2	36	VDS202A07200	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	8	7600	P, M, K, N, S	91	53	43	1,3	36	VDS202A07600	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	12	10300	P, M, K, N, S	118	71	56	1,8	45	VDS202A10300	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	8	7700	P, M, K, N, S	91	53	43	1,3	36	VDS202A07700	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	10	9400	P, M, K, N, S	103	61	49	1,6	40	VDS202A09400	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
12	11,400	P, M, K, N, S	118	71	56	2,0	45	VDS202A11400	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	10	9900	P, M, K, N, S	103	61	49	1,7	40	VDS202A09900	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	12	11200	P, M, K, N, S	118	71	56	1,9	45	VDS202A11200	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	12	11700	P, M, K, N, S	118	71	56	2	45	VDS202A11700	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	12	11600	P, M, K, N, S	118	71	56	2	45	VDS202A11600	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	14	12900	P, M, K, N, S	124	77	60	2,2	45	VDS202A12900	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
18	18,000	P, M, K, N, S	143	93	71	3,1	48	VDS202A18000	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	12	11300	P, M, K, N, S	118	71	56	1,9	45	VDS202A11300	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	6	4800	P, M, K, N, S	82	44	35	0,8	36	VDS202A04800	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	8	6800	P, M, K, N, S	91	53	43	1,1	36	VDS202A06800	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	14	12100	P, M, K, N, S	124	77	60	2,1	45	VDS202A12100	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	10	9800	P, M, K, N, S	103	61	49	1,7	40	VDS202A09800	Widia

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	e	12	10500	P, M, K, N, S	118	71	56	1,8	45	VDS202A10500	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	6	6000	P, M, K, N, S	82	44	35	1	36	VDS202A06000	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	8	6300	P, M, K, N, S	91	53	43	1,1	36	VDS202A06300	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	6	5800	P, M, K, N, S	82	44	35	1	36	VDS202A05800	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
4	1,000	P, M, K, N, S	58	9	6	0,1	28	VDS202A01000	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
12	10,400	P, M, K, N, S	118	71	56	1,8	45	VDS202A10400	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	6	4600	P, M, K, N, S	74	36	29	0,8	36	VDS202A04600	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	10	9300	P, M, K, N, S	103	61	49	1,6	40	VDS202A09300	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	8	7400	P, M, K, N, S	91	53	43	1,3	36	VDS202A07400	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	6	3700	P, M, K, N, S	66	28	23	0,6	36	VDS202A03700	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	8	7100	P, M, K, N, S	91	53	43	1,2	36	VDS202A07100	Widia

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	e	10	8400	P, M, K, N, S	103	61	49	1,4	40	VDS202A08400	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	10	9100	P, M, K, N, S	103	61	49	1,6	40	VDS202A09100	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
12	10,320	P, M, K, N, S	118	71	56	1,8	45	VDS202A10320	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	12	10600	P, M, K, N, S	118	71	56	1,8	45	VDS202A10600	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	12	10900	P, M, K, N, S	118	71	56	1,9	45	VDS202A10900	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	12	10700	P, M, K, N, S	118	71	56	1,8	45	VDS202A10700	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
14	12,400	P, M, K, N, S	124	77	60	2,1	45	VDS202A12400	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
14	12,300	P, M, K, N, S	124	77	60	2,1	45	VDS202A12300	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
e	14	12700	P, M, K, N, S	124	77	60	2,2	45	VDS202A12700	Widia

Ogled vseh različic

Vas zanimajo pogoji dostave?

Podrobnosti o izdelku

Specifikacije

Dokumentacija

Špiralni sveder Vari Drill VHM 5xD brez hladilnih kanalov – globoko vrtanje z visoko stabilnostjo

Vari Drill VHM 5xD je natančen in vzdržljiv polni karbidni špiralni sveder, namenjen vrtanju do 5-kratne globine premera (5×D). Zasnova brez notranjih hladilnih kanalov omogoča uporabo v strojih z zunanjim hlajenjem ali pri suhem vrtanju, kjer je to ustrezno.

Sveder je prevlečen s TiAlN premazom (WU25PD), ki zagotavlja izjemno toplotno obstojnost, ščiti rezalni rob pred obrabo in omogoča dolgotrajno uporabo tudi pri visokih hitrostih rezanja.

Primeren je za vrtanje jekla, nerjavečega jekla, sive in nodularne litine ter aluminijastih zlitin, kjer je potrebna visoka stabilnost in ponovljivost procesa.

Model	Vari Drill VHM 5xD
Vrsta	Polni karbidni (VHM) špiralni sveder
Hlajenje	Brez notranjih kanalov
Globina vrtanja	5×D
Premaz	TiAlN (WU25PD)
Uporaba	Jeklo, inox, litina, aluminij
Prednosti	Globoko vrtanje brez kanala, dolga življenjska doba, odlična toplotna odpornost

Specifikacije

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	e	12, 14, 4, 6, 8, 10, 16, 18, 20	10300, 10500, 10600, 10700, 10900, 11500, 11600, 11700, 11800, 11900, 12000, 12100, 12600, 12700, 12800, 12900, 13000, 13100, 1100, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900, 2000, 2100, 2200, 2300, 2400, 2500, 2600, 2700, 2800, 2900, 3000, 3100, 3200, 3300, 3400, 3500, 3600, 3700, 3800, 3900, 4000, 4100, 4200, 4300, 4400, 4500, 4600, 4700, 4800, 4900, 5000, 5100, 5200, 5300, 5400, 5500, 5700, 5800, 5900, 6000, 6100, 6200, 6300, 6400, 6500, 6600, 6700, 6800, 6900, 7000, 7100, 7200, 7300, 7400, 7500, 7600, 7700, 7800, 7900, 8000, 8100, 8200, 8300, 8400, 8500, 8600, 8700, 8800, 8900, 9000, 9100, 9200, 9300, 9400, 9500, 9700, 9800, 9900, 10000, 10100, 10200, 10800, 11000, 11100, 11200, 11300, 12200, 12500, 1,000, 1,016, 1,041, 1,067, 1,181, 1,191, 1,321, 1,397, 1,984, 2,383, 2,439, 2,489, 2,578, 2,642, 2,705, 2,779, 2,820, 2,870, 2,947, 3,048, 3,175, 3,264, 3,455, 3,571, 3,658, 3,734, 3,970, 4,039, 4,090, 4,217, 4,366, 4,623, 4,763, 4,852, 5,106, 5,159, 5,410, 5,558, 5,616, 5,954, 6,350, 6,528, 6,630, 6,746, 7,145, 7,541, 7,938, 8,334, 8,433, 8,733, 9,129, 9,347, 9,525, 9,600, 9,921, 10,320, 10,400, 10,716, 11,113, 11,400, 11,509, 11,908, 12,300, 12,304, 12,400, 13,096, 13,200, 13,300, 13,400, 13,500, 13,600, 13,700, 13,800, 13,891, 13,900, 14,000, 14,100, 14,200, 14,288, 14,300, 14,400, 14,500, 14,600, 14,684, 14,700, 14,800, 14,900, 15,000, 15,083, 15,100, 15,200, 15,300, 15,500, 15,600, 15,700, 15,800, 15,875, 15,900, 16,000, 16,100, 16,200, 16,271, 16,300, 16,500, 16,600, 16,670, 16,800, 17,000, 17,100, 17,300, 17,463, 17,500, 17,600, 17,700, 17,800, 18,000, 18,100, 18,200, 18,258, 18,500, 18,800, 19,000, 19,050, 19,100, 19,300, 19,400, 19,500, 19,800, 19,900, 20,000	P, M, K, N, S	118, 124, 58, 66, 74, 82, 91, 103, 133, 143, 153	71, 77, 9, 12, 18, 22, 28, 36, 44, 53, 61, 83, 93, 101	56, 60, 6, 9, 14, 17, 23, 29, 35, 43, 49, 63, 71, 77	1,8, 1,9, 2, 2,1, 2,2, 2,3, 0,2, 0,3, 0,4, 0,5, 0,6, 0,7, 0,8, 0,9, 1, 1,1, 1,2, 1,3, 1,4, 1,5, 1,6, 1,7, 0,1, 1,0, 2,0, 2,4, 2,5, 2,6, 2,7, 2,8, 2,9, 3,0, 3,1, 3,2, 3,3, 3,4, 3,5	45, 28, 36, 40, 48, 50	VDS202A10300, VDS202A10500, VDS202A10600, VDS202A10700, VDS202A10900, VDS202A11500, VDS202A11600, VDS202A11700, VDS202A11800, VDS202A11900, VDS202A12000, VDS202A12100, VDS202A12600, VDS202A12700, VDS202A12800, VDS202A12900, VDS202A13000, VDS202A13100, VDS202A01100, VDS202A01200, VDS202A01300, VDS202A01400, VDS202A01500, VDS202A01600, VDS202A01700, VDS202A01800, VDS202A01900, VDS202A02000, VDS202A02100, VDS202A02200, VDS202A02300, VDS202A02400, VDS202A02500, VDS202A02600, VDS202A02700, VDS202A02800, VDS202A02900, VDS202A03000, VDS202A03100, VDS202A03200, VDS202A03300, VDS202A03400, VDS202A03500, VDS202A03600, VDS202A03700, VDS202A03800, VDS202A03900, VDS202A04000, VDS202A04100, VDS202A04200, VDS202A04300, VDS202A04400, VDS202A04500, VDS202A04600, VDS202A04700, VDS202A04800, VDS202A04900, VDS202A05000, VDS202A05100, VDS202A05200, VDS202A05300, VDS202A05400, VDS202A05500, VDS202A05600, VDS202A05700, VDS202A05800, VDS202A05900, VDS202A06000, VDS202A06100, VDS202A06200, VDS202A06300, VDS202A06400, VDS202A06500, VDS202A06600, VDS202A06700, VDS202A06800, VDS202A06900, VDS202A07000, VDS202A07100, VDS202A07200, VDS202A07300, VDS202A07400, VDS202A07500, VDS202A07600, VDS202A07700, VDS202A07800, VDS202A07900, VDS202A08000, VDS202A08100, VDS202A08200, VDS202A08300, VDS202A08400, VDS202A08500, VDS202A08600, VDS202A08700, VDS202A08800, VDS202A08900, VDS202A09000, VDS202A09100, VDS202A09200, VDS202A09300, VDS202A09400, VDS202A09500, VDS202A09700, VDS202A09800, VDS202A09900, VDS202A10000, VDS202A10100, VDS202A10200, VDS202A10800, VDS202A11000, VDS202A11100, VDS202A11200, VDS202A11300, VDS202A12200, VDS202A12500, VDS202A01000, VDS202A01016, VDS202A01041, VDS202A01067, VDS202A01181, VDS202A01191, VDS202A01321, VDS202A01397, VDS202A01984, VDS202A02383, VDS202A02439, VDS202A02489, VDS202A02578, VDS202A02642, VDS202A02705, VDS202A02779, VDS202A02820, VDS202A02870, VDS202A02947, VDS202A03048, VDS202A03175, VDS202A03264, VDS202A03455, VDS202A03571, VDS202A03658, VDS202A03734, VDS202A03970, VDS202A04039, VDS202A04090, VDS202A04217, VDS202A04366, VDS202A04623, VDS202A04763, VDS202A04852, VDS202A05106, VDS202A05159, VDS202A05410, VDS202A05558, VDS202A05616, VDS202A05954, VDS202A06350, VDS202A06528, VDS202A06630, VDS202A06746, VDS202A07145, VDS202A07541, VDS202A07938, VDS202A08334, VDS202A08433, VDS202A08733, VDS202A09129, VDS202A09347, VDS202A09525, VDS202A09600, VDS202A09921, VDS202A10320, VDS202A10400, VDS202A10716, VDS202A11113, VDS202A11400, VDS202A11509, VDS202A11908, VDS202A12300, VDS202A12304, VDS202A12400, VDS202A13096, VDS202A13200, VDS202A13300, VDS202A13400, VDS202A13500, VDS202A13600, VDS202A13700, VDS202A13800, VDS202A13891, VDS202A13900, VDS202A14000, VDS202A14100, VDS202A14200, VDS202A14288, VDS202A14300, VDS202A14400, VDS202A14500, VDS202A14600, VDS202A14684, VDS202A14700, VDS202A14800, VDS202A14900, VDS202A15000, VDS202A15083, VDS202A15100, VDS202A15200, VDS202A15300, VDS202A15500, VDS202A15600, VDS202A15700, VDS202A15800, VDS202A15875, VDS202A15900, VDS202A16000, VDS202A16100, VDS202A16200, VDS202A16271, VDS202A16300, VDS202A16500, VDS202A16600, VDS202A16670, VDS202A16800, VDS202A17000, VDS202A17100, VDS202A17300, VDS202A17463, VDS202A17500, VDS202A17600, VDS202A17700, VDS202A17800, VDS202A18000, VDS202A18100, VDS202A18200, VDS202A18258, VDS202A18500, VDS202A18800, VDS202A19000, VDS202A19050, VDS202A19100, VDS202A19300, VDS202A19400, VDS202A19500, VDS202A19800, VDS202A19900, VDS202A20000	Widia

Izberite različico

Išči:

Oznaka:

LS:

D1 mm:

ISO oznaka materiala:

L3 mm:

L4 max:

L5 mm:

Šifra	Naziv	Oznaka	LS	D	L	D1 mm	ISO oznaka materiala	L3 mm	L4 max	L5 mm
4147921	SVEDER ŠPIRALNI Vari Drill VHM 5xD D18,0mm WU25PD VDS202A18000	VDS202A18000	48	18	143	18,000	P, M, K, N, S	93	71	3,1
4147922	VDS202A18100 WU25PD	VDS202A18100	50	20	153	18,100	P, M, K, N, S	101	77	3,1
4148000	SVEDER ŠPIRALNI Vari Drill VHM 5xD D1,0mm WU25PD VDS202A01000	VDS202A01000	28	4	58	1,000	P, M, K, N, S	9	6	0,1
4148001	SVEDER ŠPIRALNI Vari Drill VHM 5xD D1,016mm VDS202A01016 WU25PD	VDS202A01016	28	4	58	1,016	P, M, K, N, S	9	6	0,1
4148002	VDS202A01041 WU25PD	VDS202A01041	28	4	58	1,041	P, M, K, N, S	9	6	0,2
4148003	VDS202A01067 WU25PD	VDS202A01067	28	4	58	1,067	P, M, K, N, S	9	6	0,2
4148005	SVEDER ŠPIRALNI Vari Drill VHM 5xD D1,1mm WU25PD VDS202A01100 WU25PD	VDS202A01100	28	4	58	1100	P, M, K, N, S	9	6	0,2
4148006	VDS202A01181 WU25PD	VDS202A01181	28	4	58	1,181	P, M, K, N, S	9	6	0,2
4148007	VDS202A01191 WU25PD	VDS202A01191	28	4	58	1,191	P, M, K, N, S	9	6	0,2
4148008	SVEDER ŠPIRALNI Vari Drill VHM 5xD D1,2mm WU25PD VDS202A01200	VDS202A01200	28	4	58	1200	P, M, K, N, S	9	6	0,2
