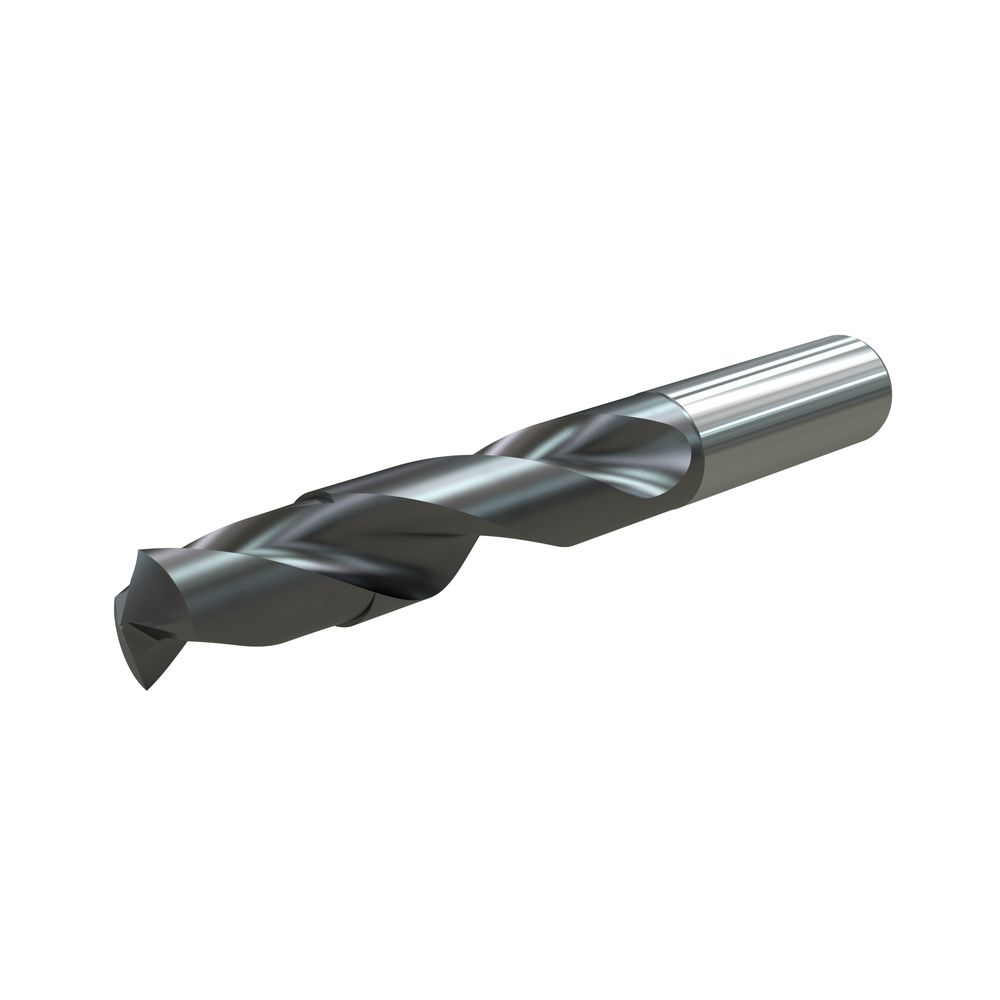

Sveder špiralni Vari Drill VHM 5xD, s kanali, WU25PD TiAIN

Skupna šifra: 5xD_VDS402A

Oznaka:

Želite sočasno naročiti več različic tega izdelka? Pojdi nahiter vnos

Pošljite povpraševanje za ta izdelek.

Vas zanimajo pogoji dostave?

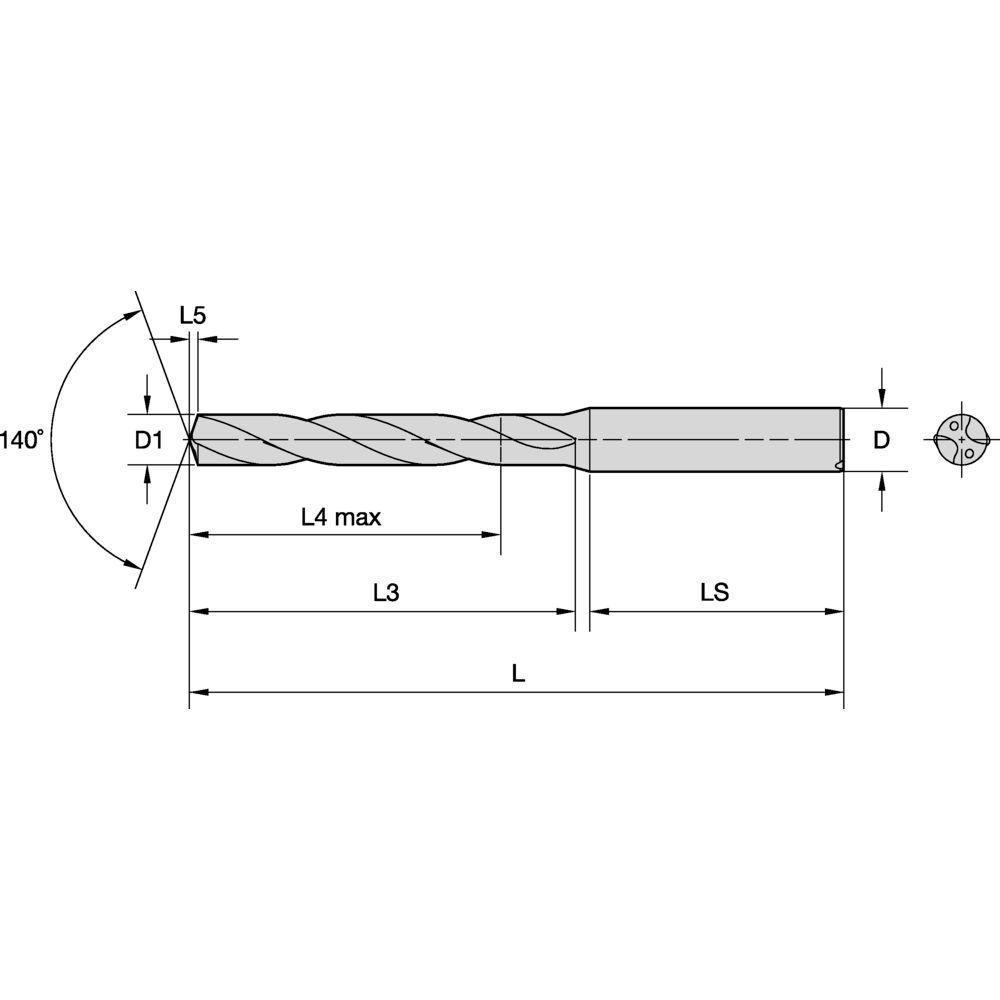

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	12	10500	P, M, K, N, S	118	71	56	1,8	45	VDS402A10500	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	14	13000	P, M, K, N, S	124	77	60	2,2	45	VDS402A13000	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	8	6200	P, M, K, N, S	91	53	43	1	36	VDS402A06200	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	8	6900	P, M, K, N, S	91	53	43	1,2	36	VDS402A06900	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	8	8000	P, M, K, N, S	91	53	43	1,4	36	VDS402A08000	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	4	2500	P, M, K, N, S	58	22	17	0,4	28	VDS402A02500	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	8	6800	P, M, K, N, S	91	53	43	1,1	36	VDS402A06800	Widia

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	i	6	5900	P, M, K, N, S	82	44	35	1	36	VDS402A05900	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	4	2300	P, M, K, N, S	58	18	14	0,4	28	VDS402A02300	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	14	12100	P, M, K, N, S	124	77	60	2,1	45	VDS402A12100	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	14	12200	P, M, K, N, S	124	77	60	2,1	45	VDS402A12200	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	14	12300	P, M, K, N, S	124	77	60	2,1	45	VDS402A12300	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	14	12400	P, M, K, N, S	124	77	60	2,1	45	VDS402A12400	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	6	4400	P, M, K, N, S	74	36	29	0,7	36	VDS402A04400	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	6	4623	P, M, K, N, S	74	36	29	0,8	36	VDS402A04623	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	4	2700	P, M, K, N, S	58	22	17	0,4	28	VDS402A02700	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	4	2947	P, M, K, N, S	58	22	17	0,5	28	VDS402A02947	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	14	13100	P, M, K, N, S	124	77	60	2,3	45	VDS402A13100	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	12	11000	P, M, K, N, S	118	71	56	1,9	45	VDS402A11000	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	6	4900	P, M, K, N, S	82	44	35	0,8	36	VDS402A04900	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
14	13,900	P, M, K, N, S	124	77	60	2,4	45	VDS402A13900	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
16	14,100	P, M, K, N, S	133	83	63	2,4	48	VDS402A14100	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
16	14,200	P, M, K, N, S	133	83	63	2,5	48	VDS402A14200	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	6	5800	P, M, K, N, S	82	44	35	1	36	VDS402A05800	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	10	8700	P, M, K, N, S	103	61	49	1,5	40	VDS402A08700	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
16	14,300	P, M, K, N, S	133	83	63	2,5	48	VDS402A14300	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
16	14,700	P, M, K, N, S	133	83	63	2,5	48	VDS402A14700	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
16	14,800	P, M, K, N, S	133	83	63	2,6	48	VDS402A14800	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
16	14,900	P, M, K, N, S	133	83	63	2,6	48	VDS402A14900	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
16	15,500	P, M, K, N, S	133	83	63	2,7	48	VDS402A15500	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
16	15,600	P, M, K, N, S	133	83	63	2,7	48	VDS402A15600	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
16	15,700	P, M, K, N, S	133	83	63	2,7	48	VDS402A15700	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
16	16,000	P, M, K, N, S	133	83	63	2,8	48	VDS402A16000	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
16	15,800	P, M, K, N, S	133	83	63	2,7	48	VDS402A15800	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
18	16,100	P, M, K, N, S	143	93	71	2,8	48	VDS402A16100	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
18	16,200	P, M, K, N, S	143	93	71	2,8	48	VDS402A16200	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
16	15,900	P, M, K, N, S	133	83	63	2,8	48	VDS402A15900	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
18	17,000	P, M, K, N, S	143	93	71	3,0	48	VDS402A17000	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
18	16,700	P, M, K, N, S	143	93	71	2,9	48	VDS402A16700	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
18	16,800	P, M, K, N, S	143	93	71	2,9	48	VDS402A16800	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
18	16,900	P, M, K, N, S	143	93	71	2,9	48	VDS402A16900	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	8	7900	P, M, K, N, S	91	53	43	1,3	36	VDS402A07900	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	8	7700	P, M, K, N, S	91	53	43	1,3	36	VDS402A07700	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	8	7800	P, M, K, N, S	91	53	43	1,3	36	VDS402A07800	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	10	8800	P, M, K, N, S	103	61	49	1,5	40	VDS402A08800	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	10	8300	P, M, K, N, S	103	61	49	1,4	40	VDS402A08300	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	10	8200	P, M, K, N, S	103	61	49	1,4	40	VDS402A08200	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
18	17,900	P, M, K, N, S	143	93	71	3,1	48	VDS402A17900	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	10	8900	P, M, K, N, S	103	61	49	1,5	40	VDS402A08900	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	6	5100	P, M, K, N, S	82	44	35	0,9	36	VDS402A05100	Widia

Ogled vseh različic

Vas zanimajo pogoji dostave?

Podrobnosti o izdelku

Specifikacije

Dokumentacija

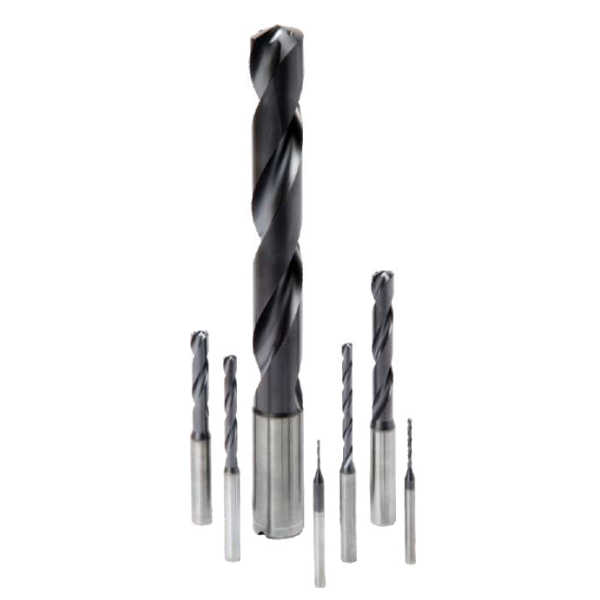

Špiralni sveder Vari Drill VHM 5xD s hladilnimi kanali – globoko in zanesljivo vrtanje v kovine

Vari Drill VHM 5xD je visokozmogljiv polni karbidni špiralni sveder s hladilnimi kanali, zasnovan za natančno vrtanje do globine 5× premera (5×D). Notranji hladilni kanali zagotavljajo učinkovito odvajanje toplote in optimalno hlajenje rezalne cone tudi pri visokih hitrostih rezanja.

Premaz TiAlN (WU25PD) omogoča dolgotrajno obdelavo z visoko toplotno obstojnostjo in odpornostjo proti obrabi. Sveder je idealna izbira za vrtanje v jeklo, nerjaveče jeklo, litine ter aluminijaste zlitine v zahtevnih industrijskih okoljih.

Model	Vari Drill VHM 5xD
Vrsta	Polni karbidni (VHM) špiralni sveder
Hlajenje	Notranji hladilni kanali
Globina vrtanja	5×D
Premaz	TiAlN (WU25PD)
Uporaba	Jeklo, nerjaveče jeklo, sive in nodularne litine, aluminij
Prednosti	Učinkovito hlajenje, večja stabilnost, podaljšana življenjska doba

Specifikacije

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	i	12, 14, 4, 6, 8, 10, 16, 18, 20	10300, 10400, 10500, 10600, 10700, 10800, 10900, 11600, 11700, 11800, 11900, 12000, 12500, 12700, 12800, 12900, 13000, 13100, 1500, 1600, 1700, 1800, 1900, 2000, 2100, 2200, 2300, 2400, 2500, 2600, 2700, 2800, 2900, 2947, 3000, 3048, 3100, 3200, 3300, 3400, 3500, 3600, 3700, 3800, 3900, 4000, 4100, 4200, 4300, 4400, 4500, 4600, 4623, 4700, 4800, 4900, 5000, 5100, 5200, 5300, 5400, 5500, 5558, 5600, 5700, 5800, 5900, 6000, 6100, 6200, 6300, 6400, 6500, 6600, 6700, 6800, 6900, 7000, 7100, 7200, 7300, 7400, 7500, 7600, 7700, 7800, 7900, 8000, 8100, 8200, 8300, 8400, 8500, 8600, 8700, 8800, 8900, 9000, 9100, 9200, 9300, 9400, 9500, 9600, 9700, 9800, 9900, 10000, 10100, 10200, 11000, 11100, 11200, 11300, 11400, 11500, 12100, 12200, 12300, 12400, 12600, 9,347, 9,525, 9,921, 1,984, 2,383, 2,439, 2,489, 2,578, 2,642, 2,779, 2,820, 2,870, 3,175, 3,264, 3,455, 3,571, 3,658, 3,734, 3,970, 4,039, 4,090, 4,217, 4,366, 4,763, 4,852, 5,106, 5,159, 5,410, 5,616, 5,954, 6,350, 6,528, 6,630, 6,746, 7,145, 7,541, 7,938, 8,334, 8,433, 8,733, 9,129, 10,320, 10,716, 11,113, 11,509, 11,908, 12,304, 13,096, 13,200, 13,300, 13,400, 13,500, 13,600, 13,700, 13,800, 13,891, 13,900, 14,000, 14,100, 14,200, 14,288, 14,300, 14,400, 14,500, 14,600, 14,684, 14,700, 14,800, 14,900, 15,000, 15,083, 15,100, 15,200, 15,300, 15,400, 15,479, 15,500, 15,600, 15,700, 15,800, 15,875, 15,900, 16,000, 16,100, 16,200, 16,271, 16,300, 16,400, 16,500, 16,600, 16,670, 16,700, 16,800, 16,900, 17,000, 17,100, 17,200, 17,300, 17,400, 17,463, 17,500, 17,600, 17,700, 17,800, 17,859, 17,900, 18,000, 18,100, 18,200, 18,258, 18,300, 18,400, 18,500, 18,600, 18,654, 18,700, 18,800, 18,900, 19,000, 19,050, 19,100, 19,200, 19,300, 19,400, 19,500, 19,600, 19,700, 19,800, 19,900, 20,000	P, M, K, N, S	118, 124, 58, 66, 74, 82, 91, 103, 133, 143, 153	71, 77, 12, 18, 22, 28, 36, 44, 53, 61, 83, 93, 101	56, 60, 9, 14, 17, 23, 29, 35, 43, 49, 63, 71, 77	1,8, 1,9, 2, 2,1, 2,2, 2,3, 0,2, 0,3, 0,4, 0,5, 0,6, 0,7, 0,8, 0,9, 1, 1,1, 1,2, 1,3, 1,4, 1,5, 1,6, 1,7, 1,0, 2,0, 2,4, 2,5, 2,6, 2,7, 2,8, 2,9, 3,0, 3,1, 3,2, 3,3, 3,4, 3,5	45, 28, 36, 40, 48, 50	VDS402A10300, VDS402A10400, VDS402A10500, VDS402A10600, VDS402A10700, VDS402A10800, VDS402A10900, VDS402A11600, VDS402A11700, VDS402A11800, VDS402A11900, VDS402A12000, VDS402A12500, VDS402A12700, VDS402A12800, VDS402A12900, VDS402A13000, VDS402A13100, VDS402A01500, VDS402A01600, VDS402A01700, VDS402A01800, VDS402A01900, VDS402A02000, VDS402A02100, VDS402A02200, VDS402A02300, VDS402A02400, VDS402A02500, VDS402A02600, VDS402A02700, VDS402A02800, VDS402A02900, VDS402A02947, VDS402A03000, VDS402A03048, VDS402A03100, VDS402A03200, VDS402A03300, VDS402A03400, VDS402A03500, VDS402A03600, VDS402A03700, VDS402A03800, VDS402A03900, VDS402A04000, VDS402A04100, VDS402A04200, VDS402A04300, VDS402A04400, VDS402A04500, VDS402A04600, VDS402A04623, VDS402A04700, VDS402A04800, VDS402A04900, VDS402A05000, VDS402A05100, VDS402A05200, VDS402A05300, VDS402A05400, VDS402A05500, VDS402A05558, VDS402A05600, VDS402A05700, VDS402A05800, VDS402A05900, VDS402A06000, VDS402A06100, VDS402A06200, VDS402A06300, VDS402A06400, VDS402A06500, VDS402A06600, VDS402A06700, VDS402A06800, VDS402A06900, VDS402A07000, VDS402A07100, VDS402A07200, VDS402A07300, VDS402A07400, VDS402A07500, VDS402A07600, VDS402A07700, VDS402A07800, VDS402A07900, VDS402A08000, VDS402A08100, VDS402A08200, VDS402A08300, VDS402A08400, VDS402A08500, VDS402A08600, VDS402A08700, VDS402A08800, VDS402A08900, VDS402A09000, VDS402A09100, VDS402A09200, VDS402A09300, VDS402A09400, VDS402A09500, VDS402A09600, VDS402A09700, VDS402A09800, VDS402A09900, VDS402A10000, VDS402A10100, VDS402A10200, VDS402A11000, VDS402A11100, VDS402A11200, VDS402A11300, VDS402A11400, VDS402A11500, VDS402A12100, VDS402A12200, VDS402A12300, VDS402A12400, VDS402A12600, VDS402A09347, VDS402A09525, VDS402A01984, VDS402A02383, VDS402A02439, VDS402A02489, VDS402A02578, VDS402A02642, VDS402A02779, VDS402A02820, VDS402A02870, VDS402A03175, VDS402A03264, VDS402A03455, VDS402A03571, VDS402A03658, VDS402A03734, VDS402A03970, VDS402A04039, VDS402A04090, VDS402A04217, VDS402A04366, VDS402A04763, VDS402A04852, VDS402A05106, VDS402A05159, VDS402A05410, VDS402A05616, VDS402A05954, VDS402A06350, VDS402A06528, VDS402A06630, VDS402A06746, VDS402A07145, VDS402A07541, VDS402A07938, VDS402A08334, VDS402A08433, VDS402A08733, VDS402A09129, VDS402A09921, VDS402A10320, VDS402A10716, VDS402A11113, VDS402A11509, VDS402A11908, VDS402A12304, VDS402A13096, VDS402A13200, VDS402A13300, VDS402A13400, VDS402A13500, VDS402A13600, VDS402A13700, VDS402A13800, VDS402A13891, VDS402A13900, VDS402A14000, VDS402A14100, VDS402A14200, VDS402A14288, VDS402A14300, VDS402A14400, VDS402A14500, VDS402A14600, VDS402A14684, VDS402A14700, VDS402A14800, VDS402A14900, VDS402A15000, VDS402A15083, VDS402A15100, VDS402A15200, VDS402A15300, VDS402A15400, VDS402A15479, VDS402A15500, VDS402A15600, VDS402A15700, VDS402A15800, VDS402A15875, VDS402A15900, VDS402A16000, VDS402A16100, VDS402A16200, VDS402A16271, VDS402A16300, VDS402A16400, VDS402A16500, VDS402A16600, VDS402A16670, VDS402A16700, VDS402A16800, VDS402A16900, VDS402A17000, VDS402A17100, VDS402A17200, VDS402A17300, VDS402A17400, VDS402A17463, VDS402A17500, VDS402A17600, VDS402A17700, VDS402A17800, VDS402A17859, VDS402A17900, VDS402A18000, VDS402A18100, VDS402A18200, VDS402A18258, VDS402A18300, VDS402A18400, VDS402A18500, VDS402A18600, VDS402A18654, VDS402A18700, VDS402A18800, VDS402A18900, VDS402A19000, VDS402A19050, VDS402A19100, VDS402A19200, VDS402A19300, VDS402A19400, VDS402A19500, VDS402A19600, VDS402A19700, VDS402A19800, VDS402A19900, VDS402A20000	Widia

Izberite različico

Išči:

Oznaka:

LS:

D1 mm:

ISO oznaka materiala:

L3 mm:

L4 max:

L5 mm:

Šifra	Naziv	Oznaka	LS	D	L	D1 mm	ISO oznaka materiala	L3 mm	L4 max	L5 mm
4142803	VDS402A18000 WU25PD	VDS402A18000	48	18	143	18,000	P, M, K, N, S	93	71	3,1
4142804	VDS402A18100 WU25PD	VDS402A18100	50	20	153	18,100	P, M, K, N, S	101	77	3,1
4142805	VDS402A18200 WU25PD	VDS402A18200	50	20	153	18,200	P, M, K, N, S	101	77	3,2
4142806	VDS402A18258 WU25PD	VDS402A18258	50	20	153	18,258	P, M, K, N, S	101	77	3,2
4142807	VDS402A18300 WU25PD	VDS402A18300	50	20	153	18,300	P, M, K, N, S	101	77	3,2
4142808	VDS402A18400 WU25PD	VDS402A18400	50	20	153	18,400	P, M, K, N, S	101	77	3,2
4142809	VDS402A18500 WU25PD	VDS402A18500	50	20	153	18,500	P, M, K, N, S	101	77	3,2
4142810	VDS402A18600 WU25PD	VDS402A18600	50	20	153	18,600	P, M, K, N, S	101	77	3,2
4142811	VDS402A18654 WU25PD	VDS402A18654	50	20	153	18,654	P, M, K, N, S	101	77	3,2
4142812	VDS402A18700 WU25PD	VDS402A18700	50	20	153	18,700	P, M, K, N, S	101	77	3,3
