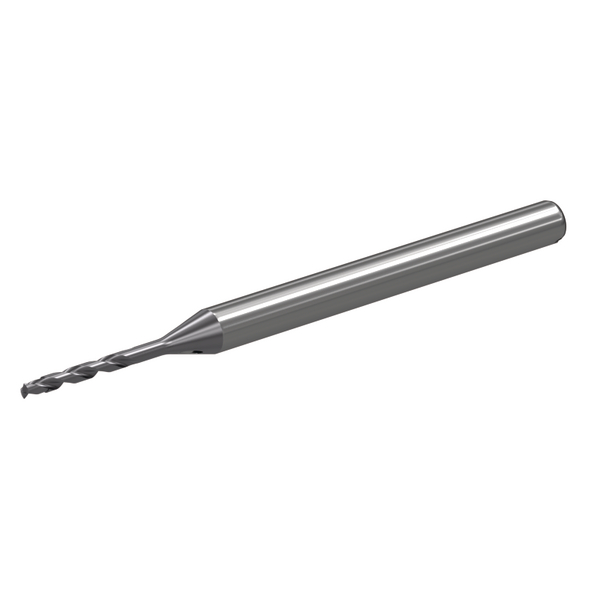

Sveder špiralni Vari Drill VHM 8xD, s kanali, WU25PD TiAIN

Skupna šifra: 8XD_VDS403A

Oznaka:

Želite sočasno naročiti več različic tega izdelka? Pojdi nahiter vnos

Pošljite povpraševanje za ta izdelek.

Vas zanimajo pogoji dostave?

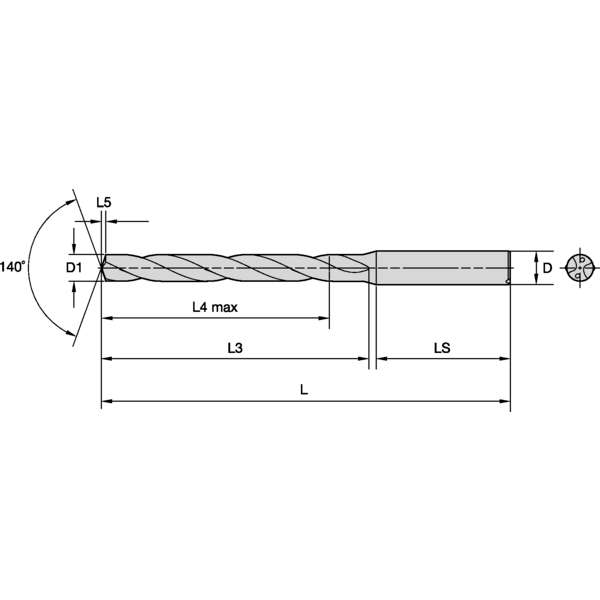

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	8	7000	P, M, K, N, S	105	67	57	1,2	36	VDS403A07000	Widia

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	i	6	5200	P, M, K, N, S	94	56	48	0,9	36	VDS403A05200	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	10	8500	P, M, K, N, S	135	92	80	1,4	40	VDS403A08500	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	16	14300	P, M, K, N, S	197	146	128	2,5	48	VDS403A14300	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	8	6800	P, M, K, N, S	105	67	57	1,1	36	VDS403A06800	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	4	2500	P, M, K, N, S	66	30	25	0,4	28	VDS403A02500	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	6	3300	P, M, K, N, S	78	40	33	0,5	36	VDS403A03300	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	6	4200	P, M, K, N, S	87	49	41	0,7	36	VDS403A04200	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	10	9800	P, M, K, N, S	135	92	80	1,7	40	VDS403A09800	Widia

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	i	6	3900	P, M, K, N, S	87	49	41	0,6	36	VDS403A03900	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	6	3500	P, M, K, N, S	78	40	33	0,6	36	VDS403A03500	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	8	6500	P, M, K, N, S	105	67	57	1,1	36	VDS403A06500	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	8	6900	P, M, K, N, S	105	67	57	1,2	36	VDS403A06900	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	10	8600	P, M, K, N, S	135	92	80	1,5	40	VDS403A08600	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	6	4800	P, M, K, N, S	94	56	48	0,8	36	VDS403A04800	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	14	12700	P, M, K, N, S	176	128	112	2,2	45	VDS403A12700	Widia

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	i	6	4000	P, M, K, N, S	87	49	41	0,7	36	VDS403A04000	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	6	6000	P, M, K, N, S	94	56	48	1	36	VDS403A06000	Widia

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	i	6	5000	P, M, K, N, S	94	56	48	0,8	36	VDS403A05000	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	12	11000	P, M, K, N, S	158	110	96	1,9	45	VDS403A11000	Widia

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	i	10	9000	P, M, K, N, S	135	92	80	1,5	40	VDS403A09000	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	12	10200	P, M, K, N, S	158	110	96	1,7	45	VDS403A10200	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	10	10000	P, M, K, N, S	135	92	80	1,7	40	VDS403A10000	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	6	4500	P, M, K, N, S	87	49	41	0,7	36	VDS403A04500	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	6	5100	P, M, K, N, S	94	56	48	0,9	36	VDS403A05100	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	4	2000	P, M, K, N, S	66	26	22	0,3	28	VDS403A02000	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	6	3000	P, M, K, N, S	78	40	33	0,5	36	VDS403A03000	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	10	8100	P, M, K, N, S	135	92	80	1,4	40	VDS403A08100	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	14	12200	P, M, K, N, S	176	128	112	2,1	45	VDS403A12200	Widia

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	i	8	8000	P, M, K, N, S	113	74	64	1,4	36	VDS403A08000	Widia

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	i	10	8800	P, M, K, N, S	135	92	80	1,5	40	VDS403A08800	Widia

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	i	10	8900	P, M, K, N, S	135	92	80	1,5	40	VDS403A08900	Widia

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	i	12	10800	P, M, K, N, S	158	110	96	1,9	45	VDS403A10800	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	14	12500	P, M, K, N, S	176	128	112	2,2	45	VDS403A12500	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	14	13500	P, M, K, N, S	176	128	112	2,3	45	VDS403A13500	Widia

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	i	16	14500	P, M, K, N, S	197	146	128	2,5	48	VDS403A14500	Widia

D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
16	16,000	P, M, K, N, S	197	146	128	2,8	48	VDS403A16000	Widia

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	i	6	5300	P, M, K, N, S	94	56	48	0,9	36	VDS403A05300	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	6	4300	P, M, K, N, S	87	49	41	0,7	36	VDS403A04300	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	6	5800	P, M, K, N, S	94	56	48	1	36	VDS403A05800	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	8	7800	P, M, K, N, S	113	74	64	1,3	36	VDS403A07800	Widia

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	i	8	7200	P, M, K, N, S	113	74	64	1,2	36	VDS403A07200	Widia

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	i	12	10500	P, M, K, N, S	158	110	96	1,8	45	VDS403A10500	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	8	6100	P, M, K, N, S	105	67	57	1	36	VDS403A06100	Widia

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	i	16	14700	P, M, K, N, S	197	146	128	2,5	48	VDS403A14700	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	14	12600	P, M, K, N, S	176	128	112	2,2	45	VDS403A12600	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	14	13000	P, M, K, N, S	176	128	112	2,2	45	VDS403A13000	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	14	12800	P, M, K, N, S	176	128	112	2,2	45	VDS403A12800	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	14	12900	P, M, K, N, S	176	128	112	2,2	45	VDS403A12900	Widia

CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
i	14	13400	P, M, K, N, S	176	128	112	2,3	45	VDS403A13400	Widia

Ogled vseh različic

Vas zanimajo pogoji dostave?

Podrobnosti o izdelku

Specifikacije

Dokumentacija

Špiralni sveder Vari Drill VHM 8xD s hladilnimi kanali – natančno globoko vrtanje z visoko zanesljivostjo

Vari Drill VHM 8xD je visoko zmogljiv karbidni špiralni sveder z notranjimi hladilnimi kanali, zasnovan za vrtanje do 8-kratne premerne globine (8×D). Namenjen je natančnemu obdelovanju lukenj večjih globin, kjer je zanesljivo odvajanje toplote ključno za kakovost in obstojnost orodja.

Premaz TiAlN (WU25PD) zagotavlja odlično zaščito rezalnega roba pri visokih rezalnih hitrostih ter omogoča dolgotrajno delovanje tudi v zahtevnih materialih. Sveder je idealen za jeklo, nerjaveče jeklo, sivo in nodularno litino ter aluminijaste zlitine.

Model	Vari Drill VHM 8xD
Vrsta	Polni karbidni (VHM) špiralni sveder
Hlajenje	Notranji hladilni kanali
Globina vrtanja	8×D
Premaz	TiAlN (WU25PD)
Uporaba	Jeklo, inox, litina, aluminijaste zlitine
Prednosti	Stabilno globoko vrtanje, dolga življenjska doba, učinkovito hlajenje

Specifikacije

Zaloga	CF	D	D1 mm	ISO oznaka materiala	L	L3 mm	L4 max	L5 mm	LS	Oznaka	Znamka
DA	i	4, 6, 8, 10, 12, 14, 16, 18, 20	1000, 1100, 1200, 1300, 1321, 1400, 1500, 1600, 1700, 1800, 1900, 1984, 2000, 2100, 2200, 2300, 2383, 2400, 2439, 2489, 2500, 2578, 2600, 2642, 2700, 2705, 2779, 2800, 2820, 2870, 2900, 2947, 3000, 3048, 3100, 3175, 3200, 3264, 3300, 3400, 3455, 3500, 3571, 3600, 3658, 3700, 3734, 3800, 3900, 3970, 4000, 4039, 4090, 4100, 4200, 4217, 4300, 4366, 4400, 4500, 4600, 4623, 4700, 4763, 4800, 4852, 4900, 5000, 5100, 5106, 5159, 5200, 5300, 5400, 5410, 5500, 5558, 5600, 5616, 5700, 5800, 5900, 5954, 6000, 6100, 6200, 6300, 6350, 6400, 6500, 6528, 6600, 6630, 6700, 6746, 6800, 6900, 7000, 7100, 7145, 7200, 7300, 7400, 7500, 7541, 7600, 7700, 7800, 7900, 7938, 8000, 8100, 8200, 8300, 8334, 8400, 8433, 8500, 8600, 8700, 8733, 8800, 8900, 9000, 9100, 9129, 9200, 9300, 9347, 9400, 9500, 9525, 9600, 9700, 9800, 9900, 9921, 10000, 10100, 10200, 10300, 10320, 10400, 10500, 10600, 10700, 10716, 10800, 10900, 11000, 11100, 11113, 11200, 11300, 11400, 11500, 11509, 11600, 11700, 11800, 11900, 11908, 12000, 12100, 12200, 12300, 12304, 12400, 12500, 12600, 12700, 12800, 12900, 13000, 13096, 13100, 13200, 13300, 13400, 13500, 13600, 13700, 13800, 13891, 13900, 14000, 14100, 14200, 14288, 14300, 14400, 14500, 14600, 14684, 14700, 14800, 14900, 15000, 15083, 15100, 15200, 15300, 15400, 15479, 15500, 15600, 15700, 15800, 15,875, 15,900, 16,000, 16,200, 16,271, 16,300, 16,400, 16,500, 16,600, 16,670, 16,700, 16,800, 16,900, 17,000, 17,100, 17,200, 17,300, 17,400, 17,463, 17,500, 17,600, 17,700, 17,800, 18,000, 18,100, 18,200, 18,300, 18,400, 18,500, 18,600, 18,700, 18,800, 18,900, 19,000, 19,050, 19,100, 19,300, 19,400, 19,500, 19,700, 19,800, 19,900, 20,000	P, M, K, N, S	58, 66, 78, 87, 94, 105, 113, 135, 122, 158, 176, 197, 214, 234	12, 18, 26, 30, 40, 49, 56, 67, 74, 92, 80, 110, 128, 146, 163, 181	10, 15, 22, 25, 33, 41, 48, 57, 64, 80, 68, 96, 112, 128, 144, 160	0,2, 0,3, 0,4, 0,5, 0,6, 0,7, 0,8, 0,9, 1, 1,1, 1,2, 1,3, 1,4, 1,5, 1,6, 1,7, 1,8, 1,9, 2, 2,1, 2,2, 2,3, 2,4, 2,5, 2,6, 2,7, 2,8, 2,9, 3,0, 3,1, 3,2, 3,3, 3,4, 3,5	28, 36, 40, 45, 48, 50	VDS403A01000, VDS403A01100, VDS403A01200, VDS403A01300, VDS403A01321, VDS403A01400, VDS403A01500, VDS403A01600, VDS403A01700, VDS403A01800, VDS403A01900, VDS403A01984, VDS403A02000, VDS403A02100, VDS403A02200, VDS403A02300, VDS403A02383, VDS403A02400, VDS403A02439, VDS403A02489, VDS403A02500, VDS403A02578, VDS403A02600, VDS403A02642, VDS403A02700, VDS403A02705, VDS403A02779, VDS403A02800, VDS403A02820, VDS403A02870, VDS403A02900, VDS403A02947, VDS403A03000, VDS403A03048, VDS403A03100, VDS403A03175, VDS403A03200, VDS403A03264, VDS403A03300, VDS403A03400, VDS403A03455, VDS403A03500, VDS403A03571, VDS403A03600, VDS403A03658, VDS403A03700, VDS403A03734, VDS403A03800, VDS403A03900, VDS403A03970, VDS403A04000, VDS403A04039, VDS403A04090, VDS403A04100, VDS403A04200, VDS403A04217, VDS403A04300, VDS403A04366, VDS403A04400, VDS403A04500, VDS403A04600, VDS403A04623, VDS403A04700, VDS403A04763, VDS403A04800, VDS403A04852, VDS403A04900, VDS403A05000, VDS403A05100, VDS403A05106, VDS403A05159, VDS403A05200, VDS403A05300, VDS403A05400, VDS403A05410, VDS403A05500, VDS403A05558, VDS403A05600, VDS403A05616, VDS403A05700, VDS403A05800, VDS403A05900, VDS403A05954, VDS403A06000, VDS403A06100, VDS403A06200, VDS403A06300, VDS403A06350, VDS403A06400, VDS403A06500, VDS403A06528, VDS403A06600, VDS403A06630, VDS403A06700, VDS403A06746, VDS403A06800, VDS403A06900, VDS403A07000, VDS403A07100, VDS403A07145, VDS403A07200, VDS403A07300, VDS403A07400, VDS403A07500, VDS403A07541, VDS403A07600, VDS403A07700, VDS403A07800, VDS403A07900, VDS403A07938, VDS403A08000, VDS403A08100, VDS403A08200, VDS403A08300, VDS403A08334, VDS403A08400, VDS403A08433, VDS403A08500, VDS403A08600, VDS403A08700, VDS403A08733, VDS403A08800, VDS403A08900, VDS403A09000, VDS403A09100, VDS403A09129, VDS403A09200, VDS403A09300, VDS403A09347, VDS403A09400, VDS403A09500, VDS403A09525, VDS403A09600, VDS403A09700, VDS403A09800, VDS403A09900, VDS403A09921, VDS403A10000, VDS403A10100, VDS403A10200, VDS403A10300, VDS403A10320, VDS403A10400, VDS403A10500, VDS403A10600, VDS403A10700, VDS403A10716, VDS403A10800, VDS403A10900, VDS403A11000, VDS403A11100, VDS403A11113, VDS403A11200, VDS403A11300, VDS403A11400, VDS403A11500, VDS403A11509, VDS403A11600, VDS403A11700, VDS403A11800, VDS403A11900, VDS403A11908, VDS403A12000, VDS403A12100, VDS403A12200, VDS403A12300, VDS403A12304, VDS403A12400, VDS403A12500, VDS403A12600, VDS403A12700, VDS403A12800, VDS403A12900, VDS403A13000, VDS403A13096, VDS403A13100, VDS403A13200, VDS403A13300, VDS403A13400, VDS403A13500, VDS403A13600, VDS403A13700, VDS403A13800, VDS403A13891, VDS403A13900, VDS403A14000, VDS403A14100, VDS403A14200, VDS403A14288, VDS403A14300, VDS403A14400, VDS403A14500, VDS403A14600, VDS403A14684, VDS403A14700, VDS403A14800, VDS403A14900, VDS403A15000, VDS403A15083, VDS403A15100, VDS403A15200, VDS403A15300, VDS403A15400, VDS403A15479, VDS403A15500, VDS403A15600, VDS403A15700, VDS403A15800, VDS403A15875, VDS403A15900, VDS403A16000, VDS403A16200, VDS403A16271, VDS403A16300, VDS403A16400, VDS403A16500, VDS403A16600, VDS403A16670, VDS403A16700, VDS403A16800, VDS403A16900, VDS403A17000, VDS403A17100, VDS403A17200, VDS403A17300, VDS403A17400, VDS403A17463, VDS403A17500, VDS403A17600, VDS403A17700, VDS403A17800, VDS403A18000, VDS403A18100, VDS403A18200, VDS403A18300, VDS403A18400, VDS403A18500, VDS403A18600, VDS403A18700, VDS403A18800, VDS403A18900, VDS403A19000, VDS403A19050, VDS403A19100, VDS403A19300, VDS403A19400, VDS403A19500, VDS403A19700, VDS403A19800, VDS403A19900, VDS403A20000	Widia

Izberite različico

Išči:

Oznaka:

LS:

D1 mm:

ISO oznaka materiala:

L3 mm:

L4 max:

L5 mm:

Šifra	Naziv	Oznaka	LS	D	L	D1 mm	ISO oznaka materiala	L3 mm	L4 max	L5 mm
4143421	SVEDER ŠPIRALNI Vari Drill VHM 8xD D10,0mm s kanali WU25PD - VDS403A10000	VDS403A10000	40	10	135	10000	P, M, K, N, S	92	80	1,7
4143422	SVEDER ŠPIRALNI Vari Drill VHM 8xD D10,1mm s kanali WU25PD - VDS403A10100 WU25PD	VDS403A10100	45	12	158	10100	P, M, K, N, S	110	96	1,7
4143473	SVEDER ŠPIRALNI Vari Drill VHM 8xD D10,2mm s kanali WU25PD - VDS403A10200	VDS403A10200	45	12	158	10200	P, M, K, N, S	110	96	1,7
4143474	SVEDER ŠPIRALNI Vari Drill VHM 8xD D10,3mm s kanali WU25P - VDS403A10300	VDS403A10300	45	12	158	10300	P, M, K, N, S	110	96	1,8
4143475	VDS403A10320 WU25PD	VDS403A10320	45	12	158	10320	P, M, K, N, S	110	96	1,8
4143476	SVEDER ŠPIRALNI Vari Drill VHM 8xD D10,4mm s kanali WU25P - VDS403A10400	VDS403A10400	45	12	158	10400	P, M, K, N, S	110	96	1,8
4143477	SVEDER ŠPIRALNI Vari Drill VHM 8xD D10,5mm s kanali WU25P - VDS403A10500	VDS403A10500	45	12	158	10500	P, M, K, N, S	110	96	1,8
4143478	VDS403A10600 WU25PD	VDS403A10600	45	12	158	10600	P, M, K, N, S	110	96	1,8
4143479	VDS403A10700 WU25PD	VDS403A10700	45	12	158	10700	P, M, K, N, S	110	96	1,8
4143480	VDS403A10716 WU25PD	VDS403A10716	45	12	158	10716	P, M, K, N, S	110	96	1,8
